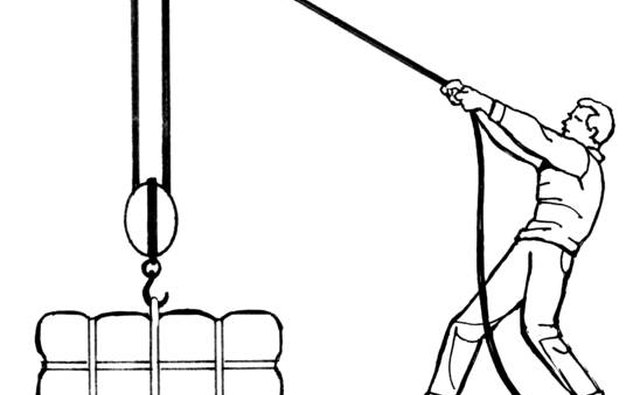

Reeving blocks to set up a double pulley system requires a little thought. A double pulley system, also known as a "block and tackle," consists of the pulleys, or blocks, and the tackle, the ropes riven through the blocks. You must decide if you will use a double pulley system with one sheave--the roller in a pulley--in each block, which will give you a mechanical advantage of 3 to 1, or a double pulley system with two sheaves in each block, which will give you a mechanical advantage of 5 to 1.

Items you will need

  • 2 blocks, each either two-sheave or three-sheave

  • Line, natural or synthetic fiber

Step 1

Step 1
GoneOutdoors

Lay the blocks on the deck, 2 to 3 feet apart, with one block on its side and the other on its face. The hooks should point away from each other. The block lying on its side will be the upper block of the tackle; the bottom block will attach to the load.

Step 2

Step 2
GoneOutdoors

Reeve the line from the left, through the sheave of the block lying on its side.

Step 3

Step 3
GoneOutdoors

Reeve the rope through the sheave of the block lying on its face.

Step 4

Step 4
GoneOutdoors

Bring the rope up to the becket of the block lying on its side and secure it to the becket with a becket bend or an eye splice.

Step 5

Step 5
GoneOutdoors

Use the block that has the rope belayed to its becket as the uppermost block in your tackle to gain the best mechanical advantage.

Step 1

Step 1
GoneOutdoors

Lay the blocks on the deck, 2 to 3 feet apart, with one block on its side and the other on its face. The hooks should point away from each other. The block lying on its side will be the upper block of the tackle; the bottom block will attach to the load.

Step 2

Step 2
GoneOutdoors

Reeve the line from the left, through the sheave nearest the deck on the block lying on its side.

Step 3

Step 3
GoneOutdoors

Reeve the rope through the one sheave of the block lying on its face.

Step 4

Step 4
GoneOutdoors

Reeve the rope though the empty sheave of the block lying on its side.

Step 5

Step 5
GoneOutdoors

Reeve the rope through the remaining sheave of the block lying on its face.

Step 6

Step 6
GoneOutdoors

Pass the rope up to the becket of the block lying on its side and secure it to the becket with a becket bend or an eye splice.

Step 7

Step 7
GoneOutdoors

Use the block that has the rope belayed to its becket as the uppermost block in your tackle to gain the best mechanical advantage.

Warnings

  • Always ensure that the line and blocks chosen have a sufficient safe working load for the task you are attempting.

Tips

  • Until riven through a block, it's called "line." After being riven through a block, it becomes part of "tackle" and is called rope.
